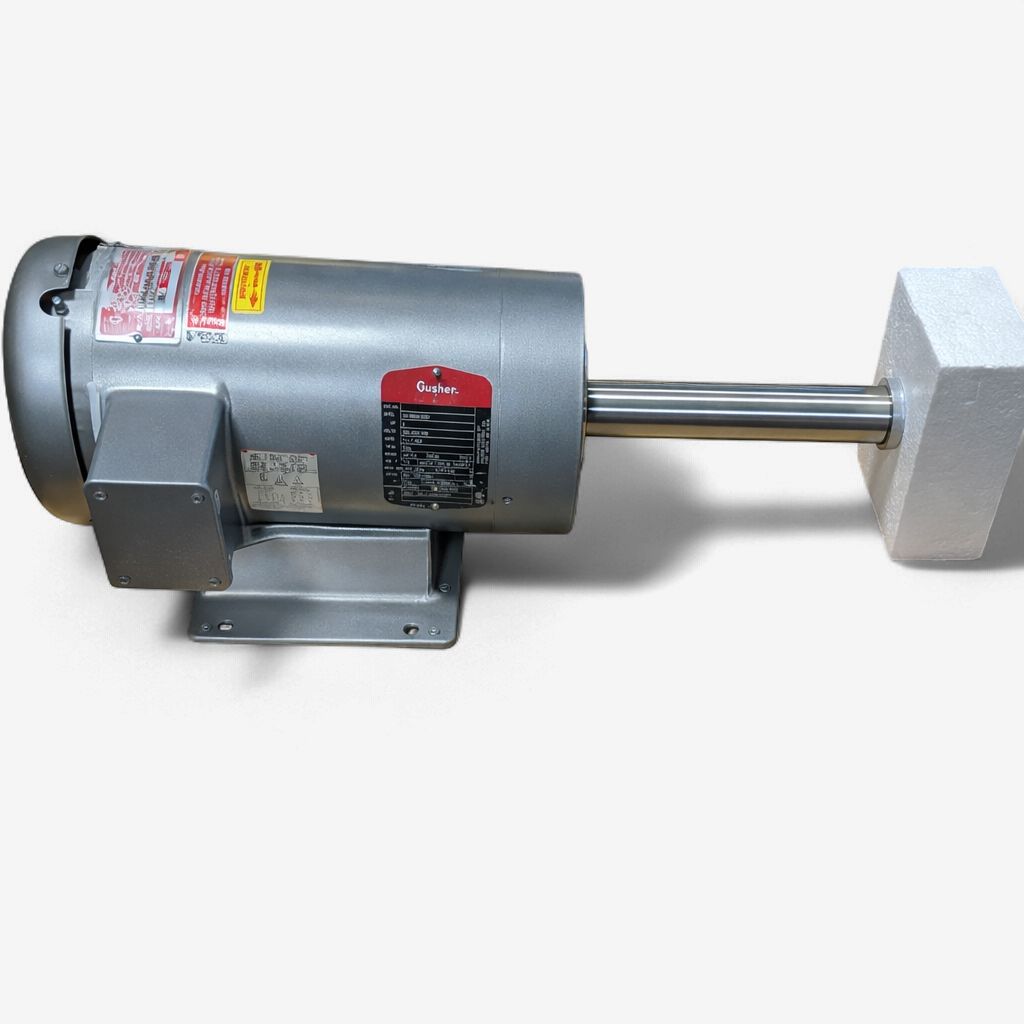

Key Features of the Baldor/Gusher Pump 3HP Motor 11019NS-B

This Gusher 3 HP electric motor, manufactured by Baldor Electric Co., is a high-performance and reliable motor designed for demanding applications. Below are its specifications and features:

• Model/Spec: 35H989Q130G1
• Voltage & Phase: Rated at 208–230/460V, 3-phase, 60 Hz
• Full Load Amps: 7.7–7.3/3.5
• Speed: Operating at 3450 RPM

Frame and Enclosure:

• Features a 145TC C-face frame
• TEFC (Totally Enclosed Fan Cooled) enclosure for enhanced durability and protection

Performance Ratings:

• Continuous duty rating
• 40°C ambient rating
• Service factor: 1.15
• NEMA Design B, Code M
• Class F insulation

Efficiency and Power Factor:

• Nominal efficiency: 87.5%
• Power factor: 92%
• Usable at 208V drawing 7.7 amps

Bearings:

• Equipped with 6207 drive end bearing
• 6203 opposite drive end bearing

This motor is manufactured in the USA by Baldor Electric Co. for Gusher Pumps, ensuring high-quality craftsmanship and reliability.
