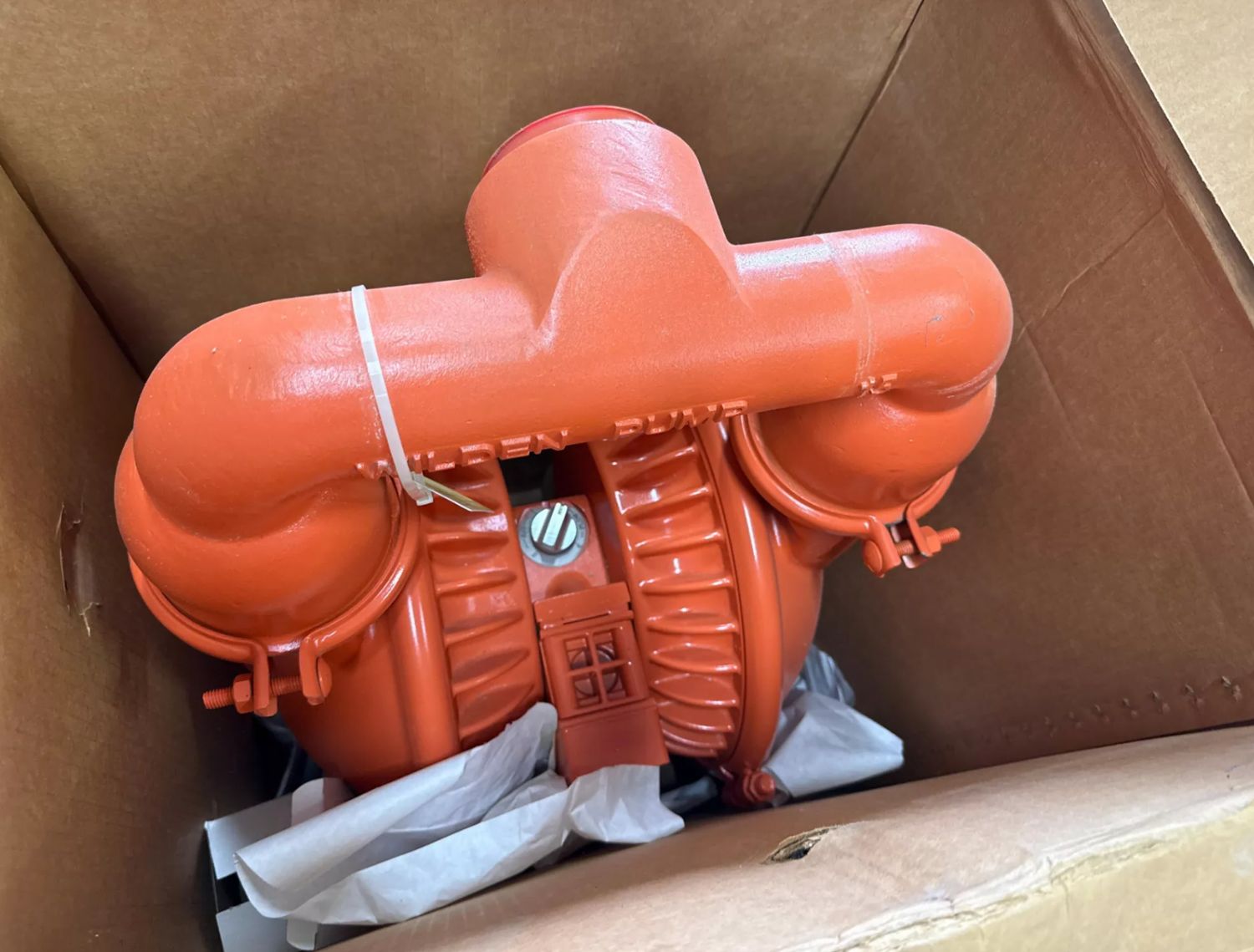

The Wilden PX15 is a 3-inch, clamped metal air-operated double-diaphragm (AODD) pump known for its high flow rates, durability, and efficiency-enhancing Pro-Flo SHIFT air distribution system. It is a versatile industrial transfer pump suitable for a wide range of applications.

• Maximum Flow Rate: 243 gpm (918 lpm)
• Max. Inlet Air Pressure: 125 psi (8.6 bar)
• Inlet/Outlet Size: 3" (76 mm)
• Air Inlet Size: 3/4" FNPT (19 mm)
• Max. Solids Size: 3/8" (9.5 mm) diameter
• Max. Suction Lift: 22.1' (6.7 m) Dry, 31.2' (9.5 m) Wet
• Displacement Per Stroke: Approximately 1.33 gallons (5.03 liters)
• Shipping Weight: 132 lbs (60 kg) (varies by material)
• Height: 32.4" (823 mm)
• Width: 19.9" (505 mm)
• Depth: 16.0" (406 mm)

Accepted Payment Methods: Cash or Certified Check.
All funds must clear prior to release of equipment.

Delivery -  All equipment is sold FOB our facility. Buyer assumes responsibility for freight, insurance, and risk of loss once the item leaves our dock.
