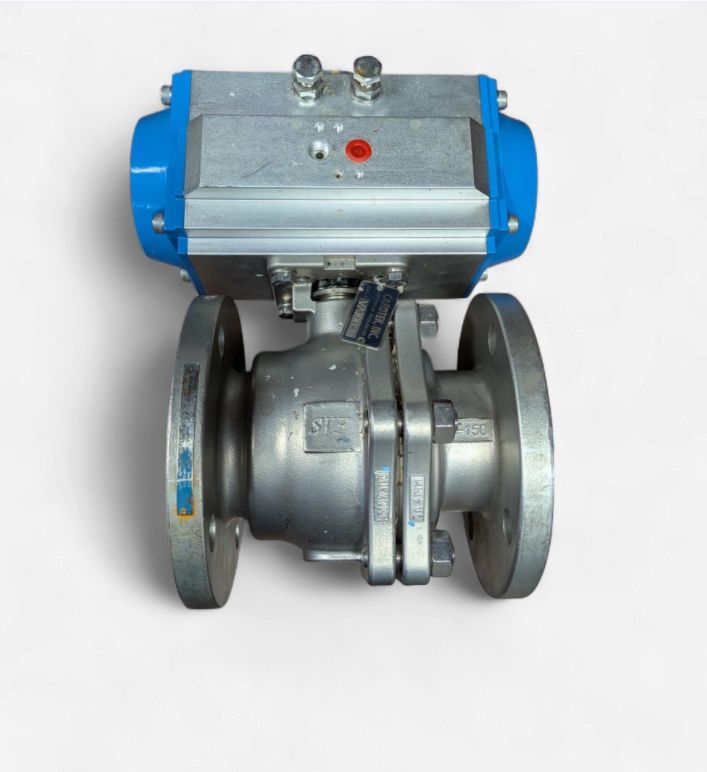

The EZD-110-B is a high-performance, rack-and-pinion pneumatic actuator from the SVF EZ-Tork series. Engineered for reliability in demanding process industries such as Pharmaceutical, Chemical, and Food & Beverage, this compact unit provides precise 90° rotation for ball and butterfly valves.

Technical Specifications

• Manufacturer: SVF Flow Controls
• Model: EZD-110-B (Double-Acting)
• Operation: Double-Acting (Requires air pressure to both Open and Close).
• Torque Output: ~620 in-lbs (70 Nm) at 80 PSI air supply.
• Housing Material: High-strength, hard-anodized Aluminum (ASTM 6063-T6).
• Valve Size: 3"
• Pressure Class: 150 lb
• Valve Body Material: CF8M (Cast 316 Stainless Steel)
• Connection Type: Flanged
• Seals (Suffix B): Buna-N (Nitrile); Temperature rated from -5°F to 176°F (-20°C to 80°C).
• Mounting Interface: ISO 5211 (Universal valve mounting) and NAMUR (Standardized accessory mounting for solenoid valves/limit switches).
• Drive Shaft: Nickel-plated alloy steel for superior corrosion resistance.

This actuator is designed to deliver robust performance and durability, making it an ideal choice for industrial applications.
