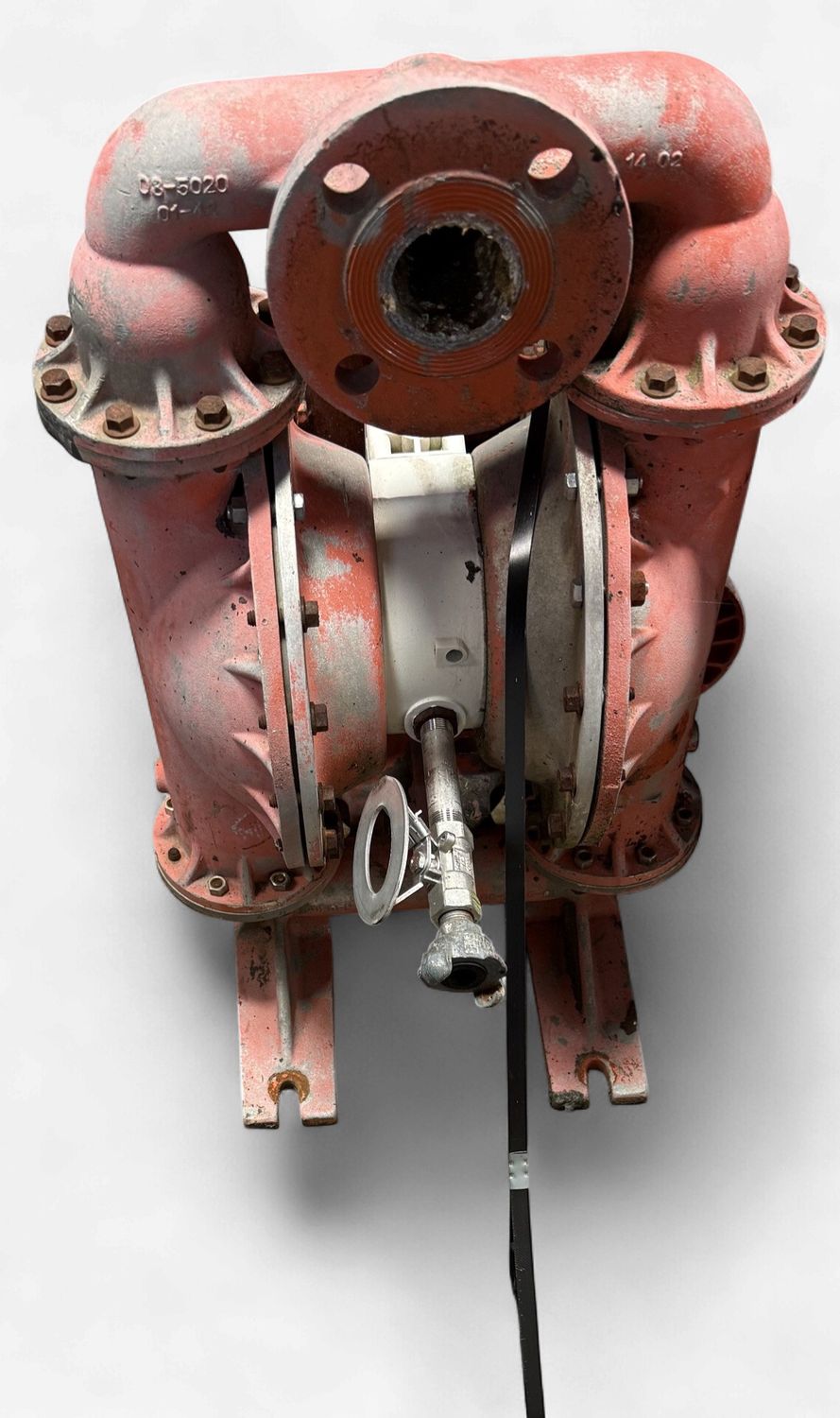

These 2" pumps are high-efficiency industrial units designed to transfer large volumes of sludges, slurries, and abrasive or shear-sensitive fluids without breaking them down.

Pump Type: Air-Operated Double Diaphragm (AODD)
Brand: Wilden
Port Size: 2 inch
Connection Type: Flanged
Body Material: Cast Aluminum
Operation: Compressed Air Driven

Performance (Typical for 2" Wilden)

• Max Flow Rate: ~150–200 GPM (depending on model & air supply)

• Max Air Pressure: 120 PSI

• Max Solid Handling: Up to 1/4"–3/8" (varies by diaphragm)

• Max Head: Approx. 125 PSI (equivalent)

• Self-Priming: Yes

• Dry Run Capable: Yes

Common Applications

• Slurry transfer

• Wastewater

• Chemical transfer

• Oil & petroleum products

• Industrial processing
